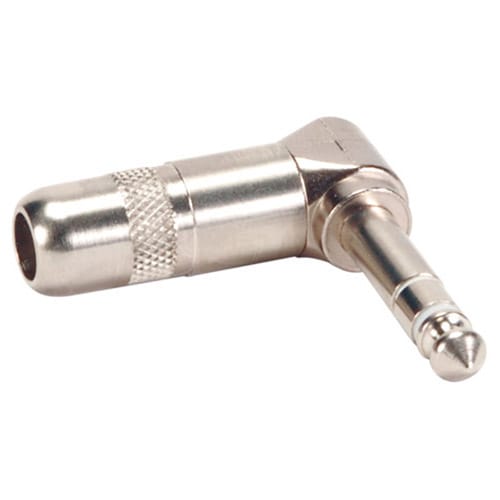

1/4" 3-Conductor Male
Cable Mount Connector
90° Right-Angle
Solder Lugs
Shielded Handle
Overview

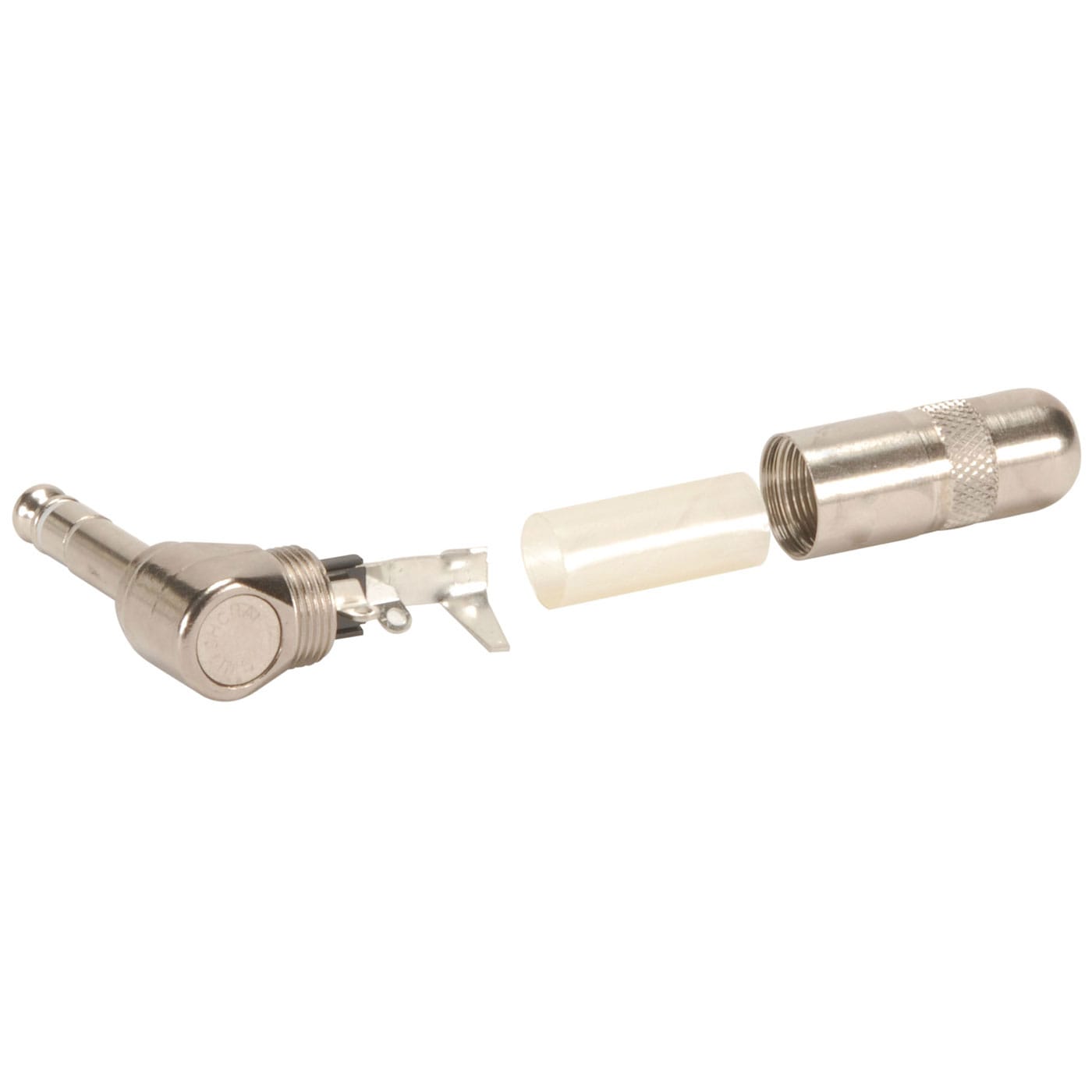

Switchcraft's 1/4" Stereo 3 Conductor Right Angle Cable Mount Plug with Solder Contacts is designed for OEMs and users of commercial phone plugs. The plugs offer large terminals for easy wiring, and only three pieces to assemble - handle, insulator and finger/housing assembly and rugged reliability for stable, long-term, trouble-free operation.
Specifications
CONSTRUCTION:
Tip, Rod and Handle: Nickel-plated copper alloy.
Housing/Sleeve: Nickel-plated.
Tip Terminal: Tin-plated copper alloy.
Sleeve (Clamp) Terminal: Tin-plated steel.
Insulation: Thermoplastic.
DIELECTRIC: Withstanding Voltage: 500 Vac.
INSULATION RESISTANCE: 50,000 Megaohms minimum (initial)
OPERATING TEMPERATURE: -20°C to +65°C
superb solid construction connector! By the mere feel and weight of it in your hand tells you this connector will go a long way...
