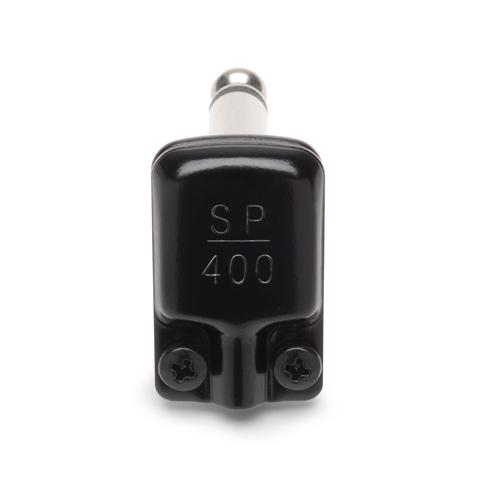

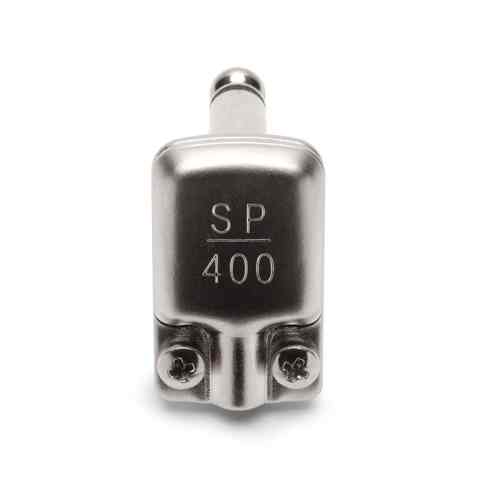

Squareplug SP400 is here! The world's lowest profile soldered plug to date. Its solid and compact design, not to mention its flat edges, measures by only 8.3mm and it is 20% smaller than the popular Switchraft 228 pancake design and even thinner than any soldered or solderless plug in the market today.
Have you ever found yourself in a position where you can't plug in 2 pancake plugs adjacent with each other because the edges are too fat?
Perhaps on a delay pedal with a tap tempo input socket right next to the input socket. Probably on a True bypass footswitch with input sockets designed to be close with each other.
Well, Squareplug SP400 is the plug for you
It has ability [thanks to a super compact design] to be patched into adjacent and closely–spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.
With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!
- Ultra–low–profile connector [measures only 8.3mm / 0.326" x 17mm / 0.67" x 28mm / 1.10"] for highest packing density
- Serviceable, all–metal plug designed to snug–fit smaller diameter cables (4 to 4.5mm) for optimum strain relief and improved emi protection
- 2 solder tabs for quick and easy soldering/desoldering
- Insulation sheet to prevent hot and ground signals from shorting
Recommended for use with Mogami W2319
Compatibility:
DISASTER AREA DPC5,
DPC8EZ
CARL MARTIN OCTASWITCH,
OCTASWITCH MKII
CUSACK MUSIC PBT6, PBT9
G-LAB GSC2, GCS3
IDEA BENCH SWITCHEROO
LEHLE PARALLEL L, LITTLE
DUAL, DUAL SGOS, D.LOOP
SGOS, 1AT3 SGOS, 3AT1
SGOS, P-SPLIT II
MUSICOM LAB 6M, 62M, 8L,
MKIV, MKV, MKV LITE
ONE CONTROL OC10
PROVIDENCE AUDIO PEC4V,
PEC2
RJM MUSIC PBC, MINI
EFFECT GIZMO
THE GIG RIG QUARTER
MASTER QMX2, 4, 6, 8, 10
VINTECK V8
VOODOOLAB PEDAL
SWITCHER, PX8, PX8 PLUS,
HEX
WALRUS AUDIO TRANSIT 5
Not Compatible:
BOSS ES5, ES8
THE GIG RIG G2
