3PDT 9-Pin LED Guitar Effects Pedal Foot Switches Box Stomp True Bypass for guitar effects pedals

Product Description:

3PDT Latching Footswitch with LED Ring (Solder Lugs, Blue Body) — True Bypass

NEW FACTORY STOCK

This is a 3PDT (Triple Pole Double Throw) latching footswitch with a built-in LED indicator ring, the go-to switch for true bypass wiring on guitar and bass effects pedals. The 9 solder lugs across three poles let you switch the signal path, ground/buffer routing, and the LED circuit all in one stomp, while the ring LED lights up around the base to show at a glance whether your effect is engaged.

Specifications:

• Type: 3PDT, 9 solder lugs, with LED
• Switch Action: Latching (On-On), stays engaged until pressed again
• Housing: Blue plastic body with metal mounting bracket
• Actuator: Round metal shaft/button, chrome finish
• LED: Ring-style indicator around switch base, lights up when engaged

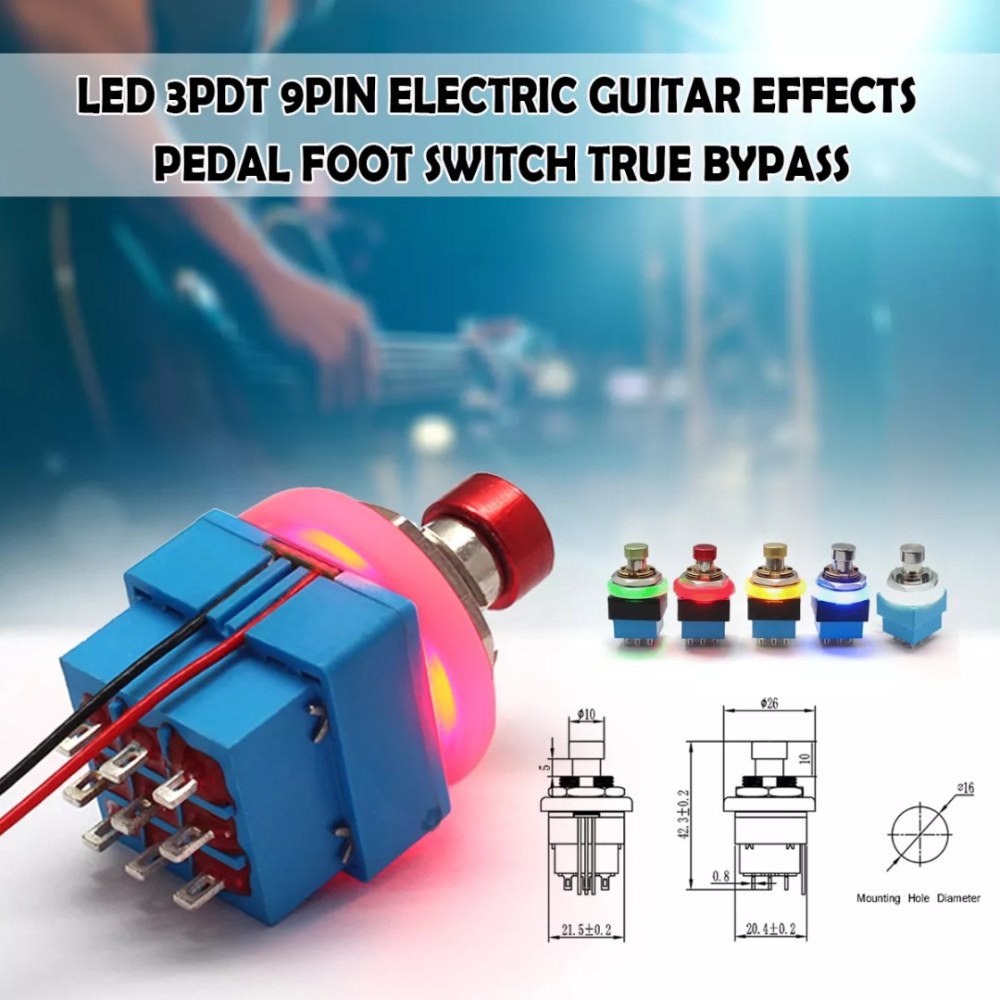

• Mounting Hole: 12mm (standard footswitch bushing)
• Termination: Solder lugs
• Rating: 3A 250VAC / 6A 125VAC
•


Available LED Colors:

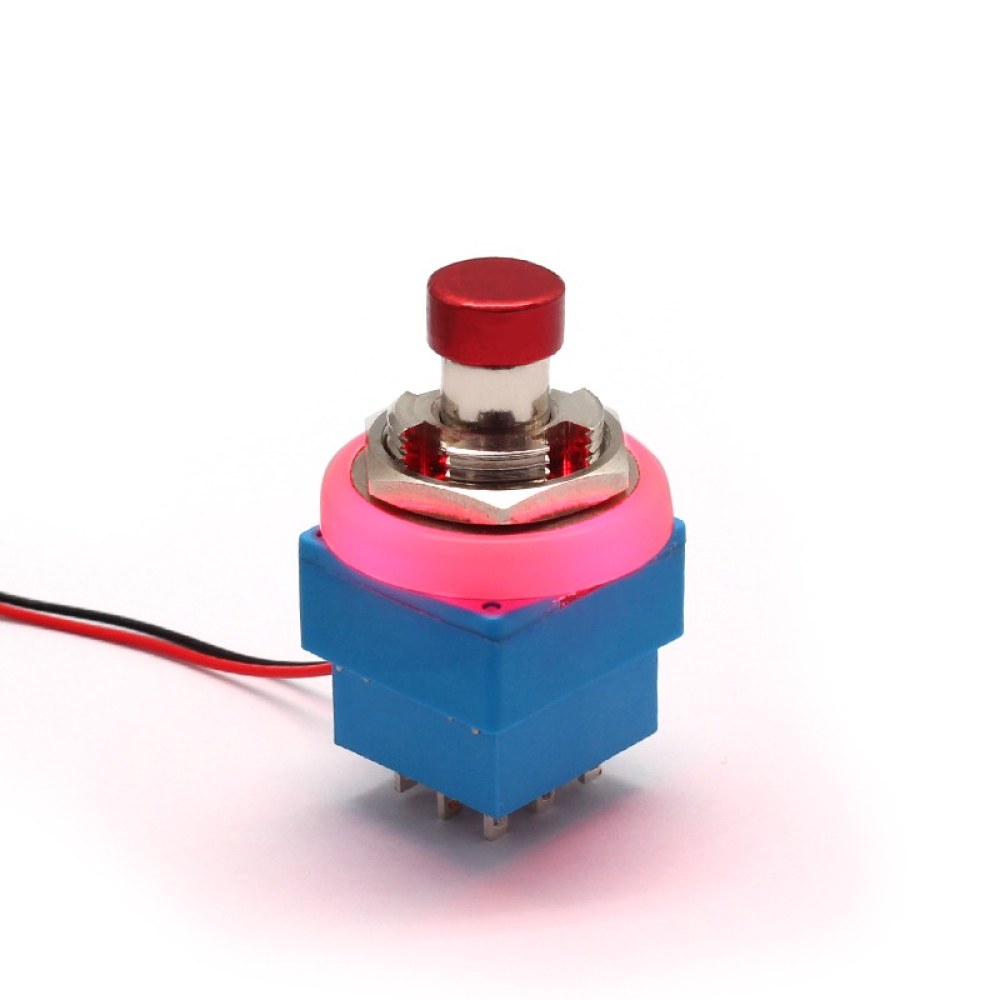

• Red

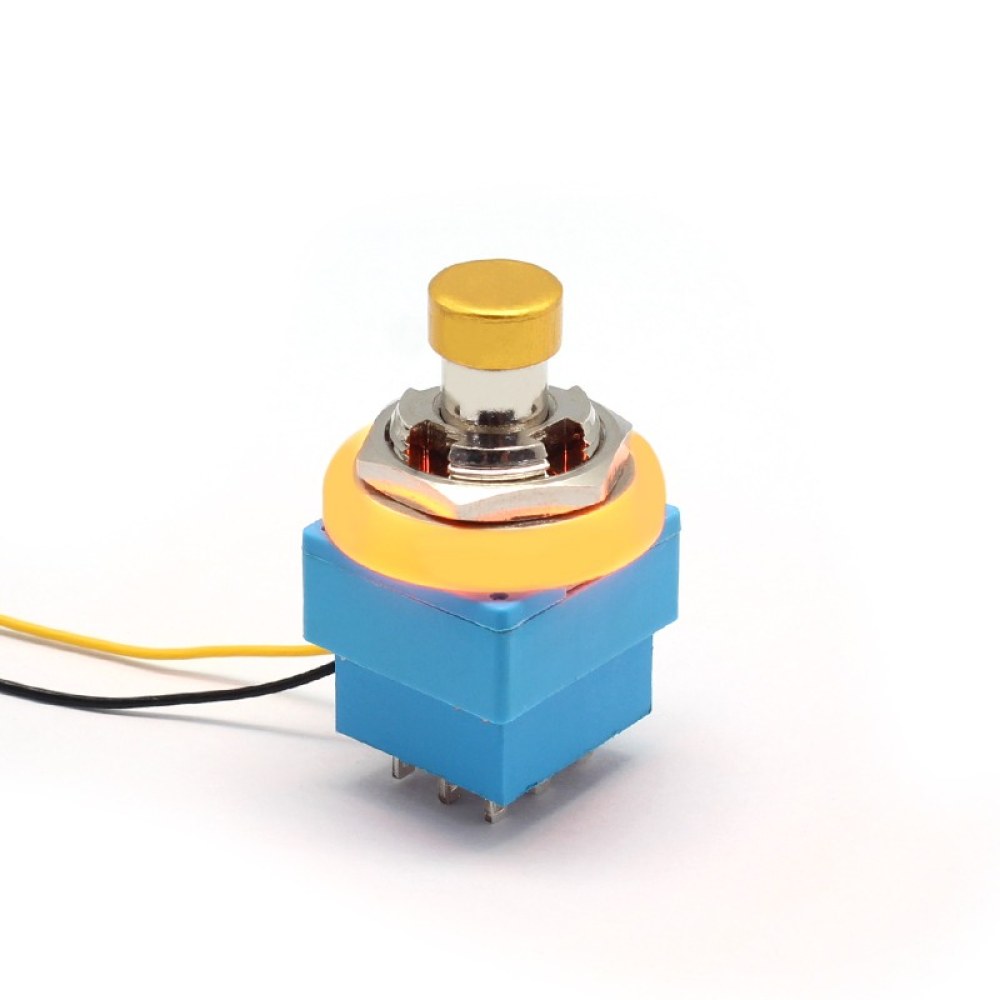

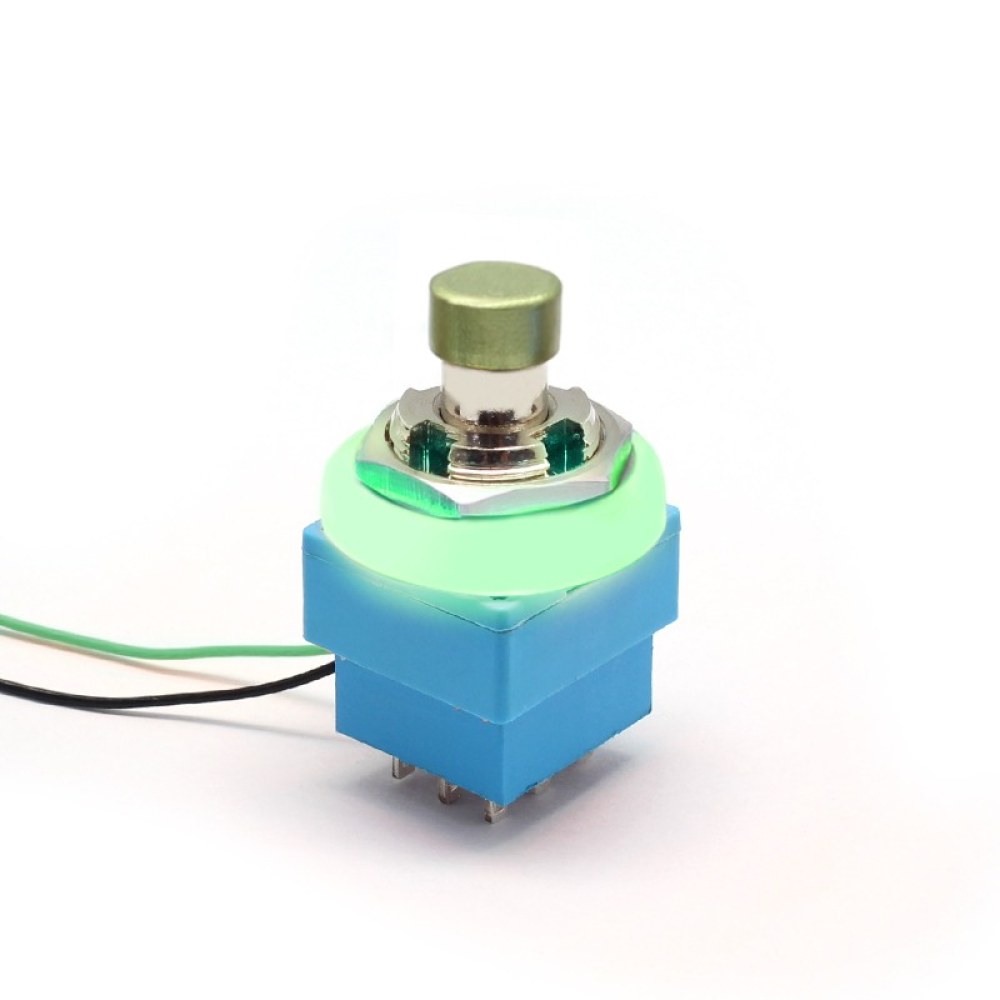

• Green

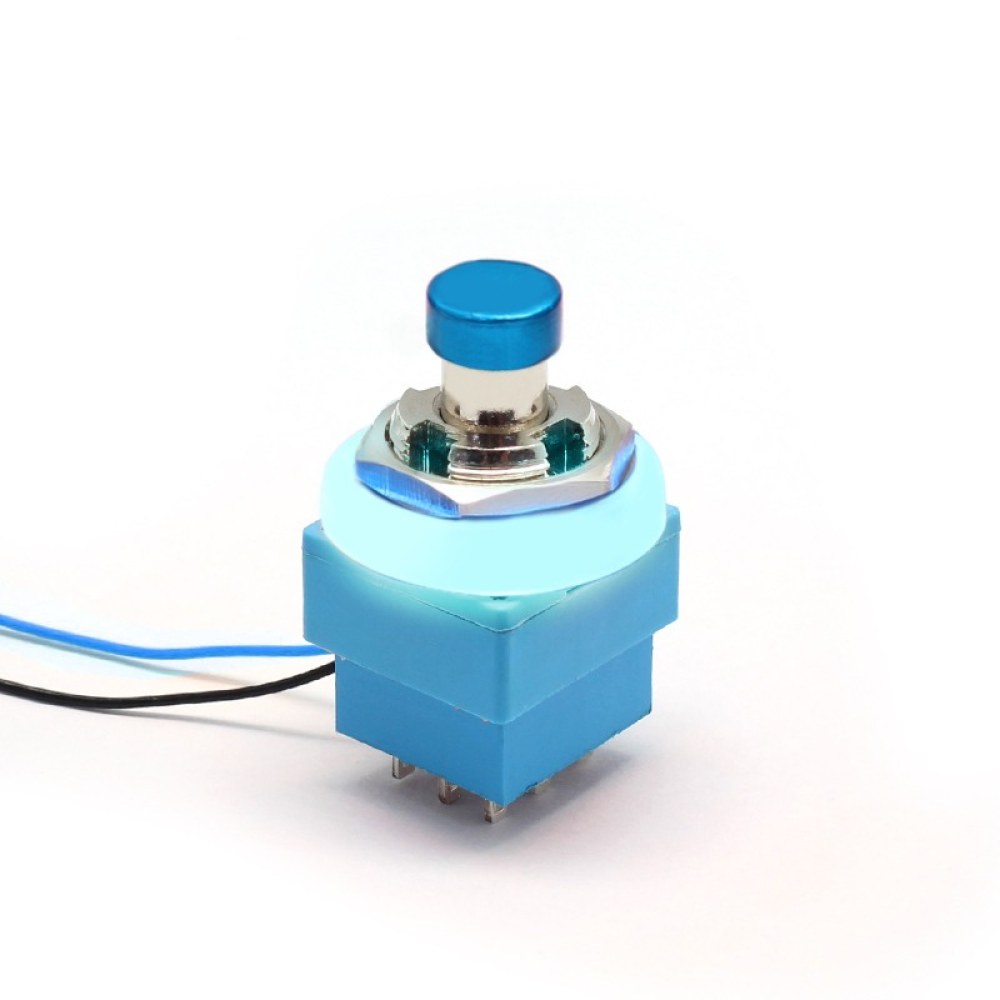

• Blue
• Yellow

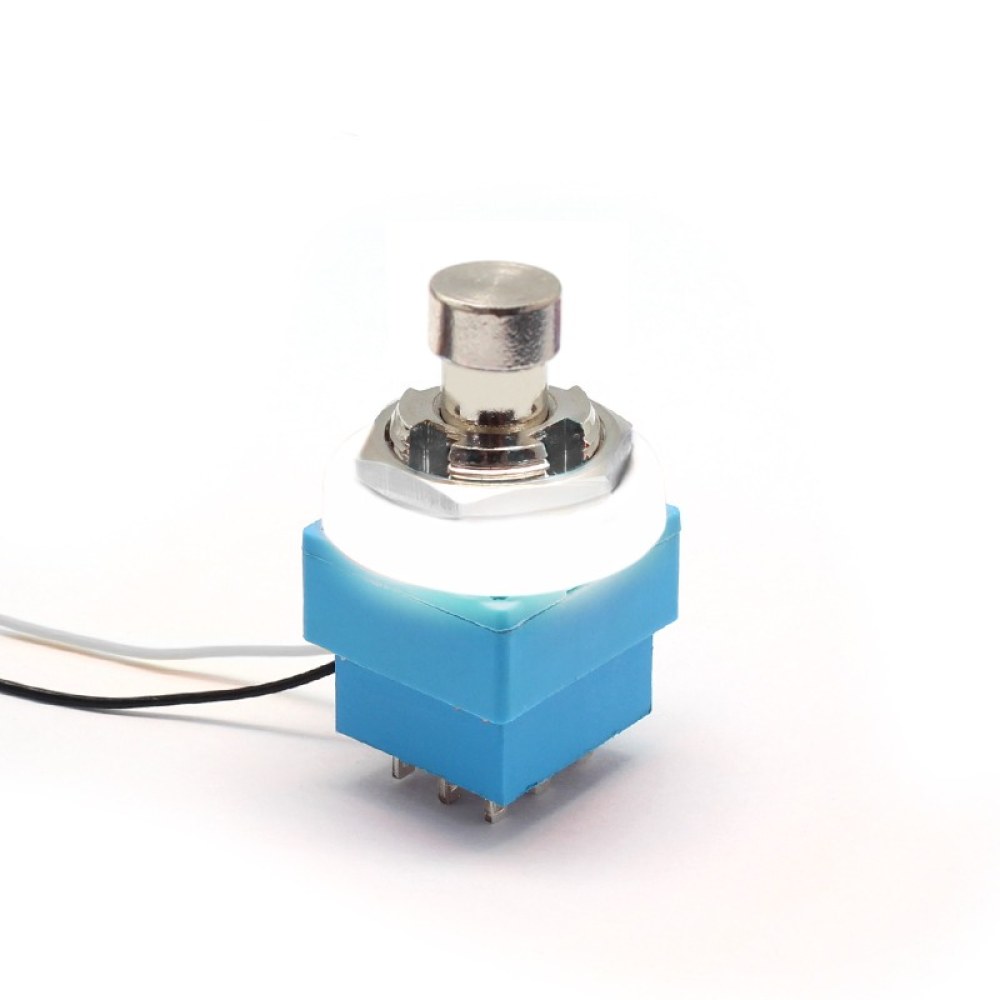

• White
• Red-Blue

Features:

• True bypass capable (3 poles cover signal, ground, and LED switching)
• Built-in LED ring for clear visual on/off indication, no extra wiring needed for the light itself
• Durable metal actuator built for repeated foot presses
• Threaded bushing with mounting nut and washer included
• Standard footprint fits most stompbox enclosures

Best used for: DIY guitar/bass effects pedals, true bypass looper boxes, pedal modding, and other stompbox-style audio projects where you want a lit indicator for engaged/bypassed status.
