3PDT Latching Solder Lug Footswitch Blue
AVAILABLE OPTIONS
Product Description:

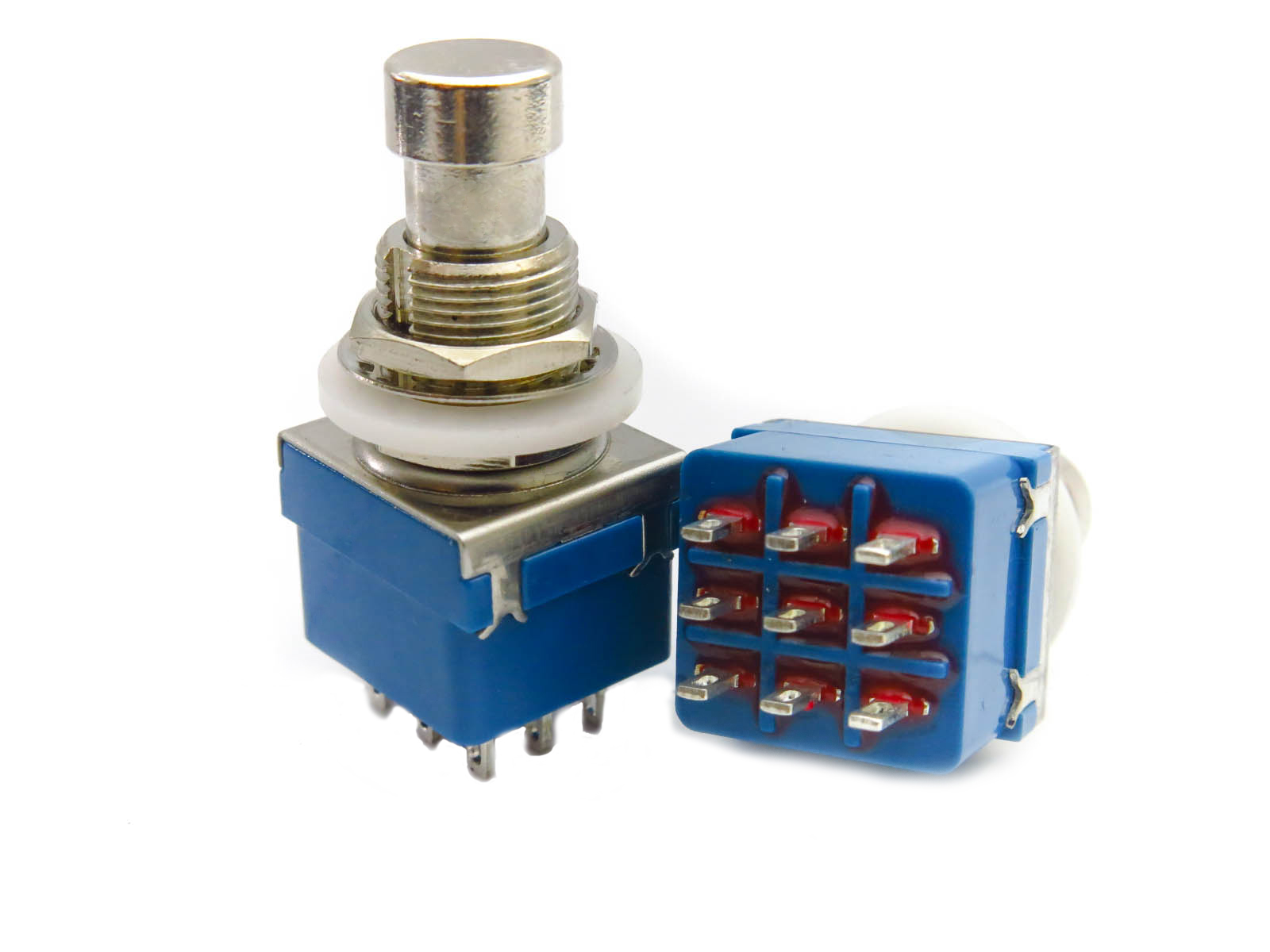

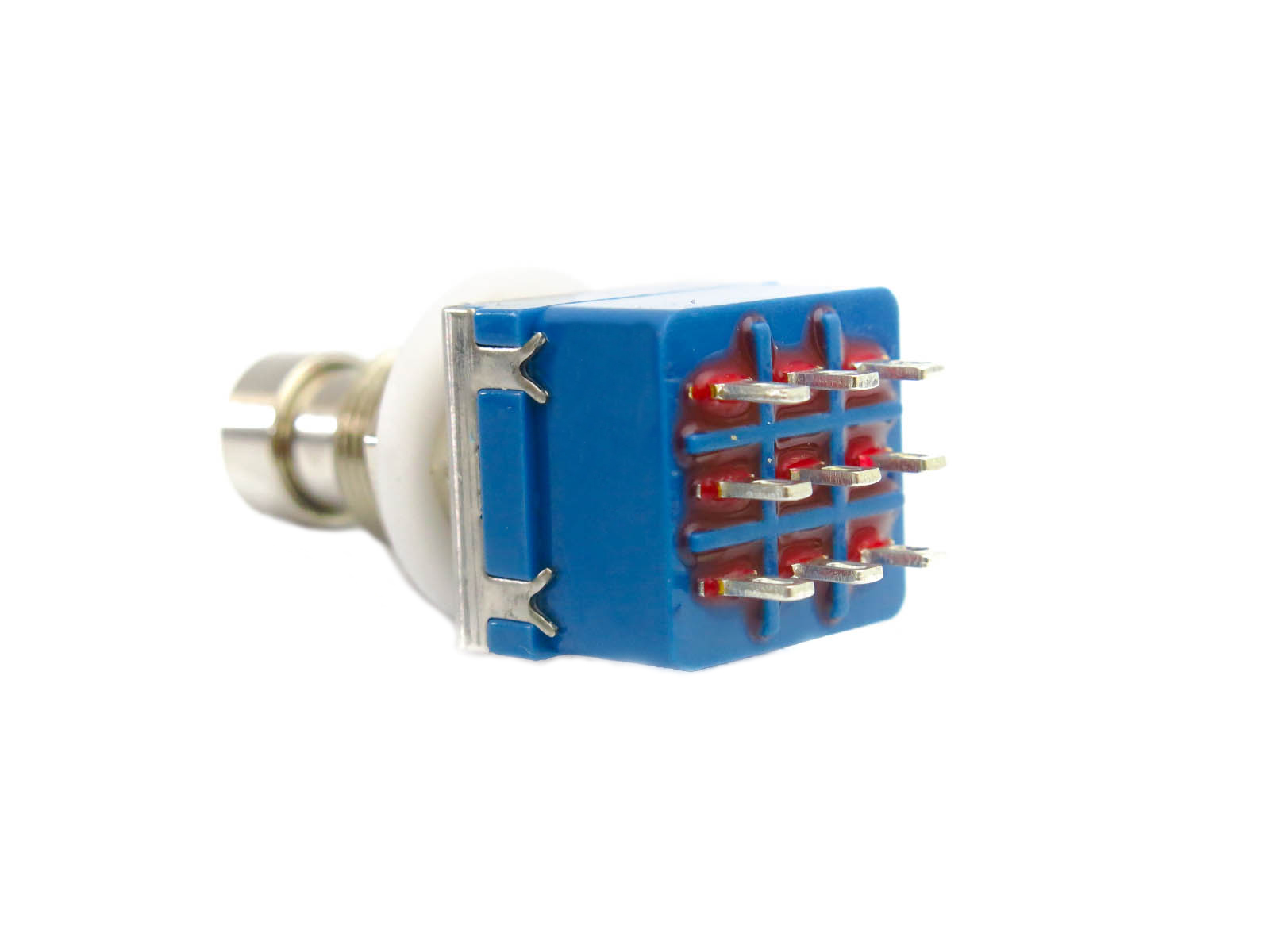

3PDT Latching Footswitch (Solder Lugs, Blue) — True Bypass
This is a 3PDT (Triple Pole Double Throw) latching footswitch, the standard switch used for true bypass wiring on guitar and bass effects pedals. With 9 solder lugs across three poles, it lets you switch the signal path, ground/buffer routing, and an LED indicator circuit all with a single stomp, giving clean, pop-free bypass switching with no tone loss when the effect is off.
Specifications:
- Type: 3PDT, 9 solder lugs
- Switch Action: Latching (On-On), stays engaged until pressed again
- Housing: Blue plastic body with metal mounting bracket
- Actuator: Round metal shaft/button, chrome finish
- Mounting Hole: 12mm (standard footswitch bushing)
- Termination: Solder lugs
- Rating: 3A 250VAC / 6A 125VAC
Features:
- True bypass capable (3 poles cover signal, ground, and LED switching)
- Durable metal actuator built for repeated foot presses
- Threaded bushing with mounting nut and washer included
- Standard footprint fits most stompbox enclosures
Best used for: DIY guitar/bass effects pedals, true bypass looper boxes, pedal modding, and other stompbox-style audio projects requiring reliable on/off switching.
