1/4" 2-Conductor Male
Cable Mount Connector
90° Right-Angle
Solder Lugs
Shielded Handle
Overview

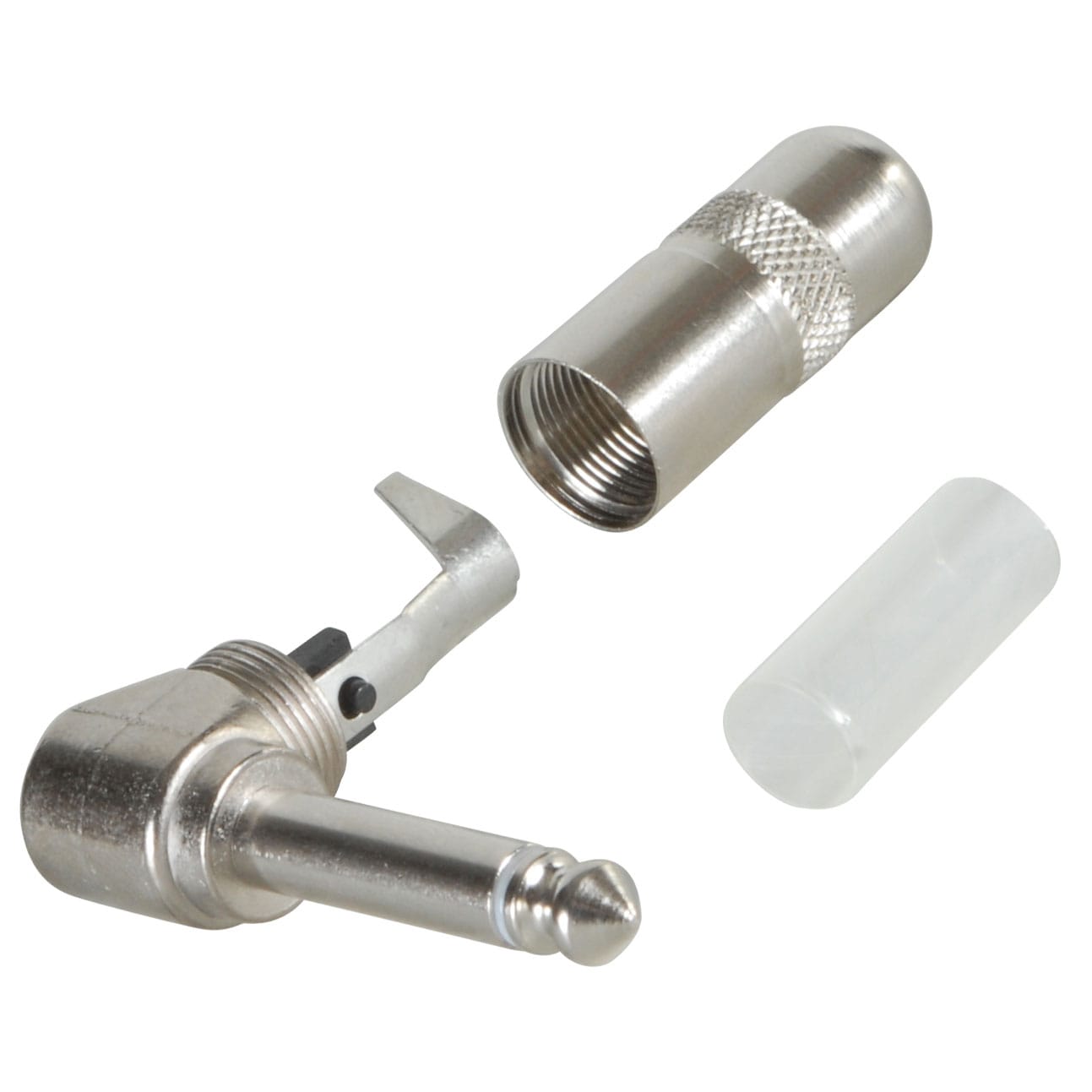

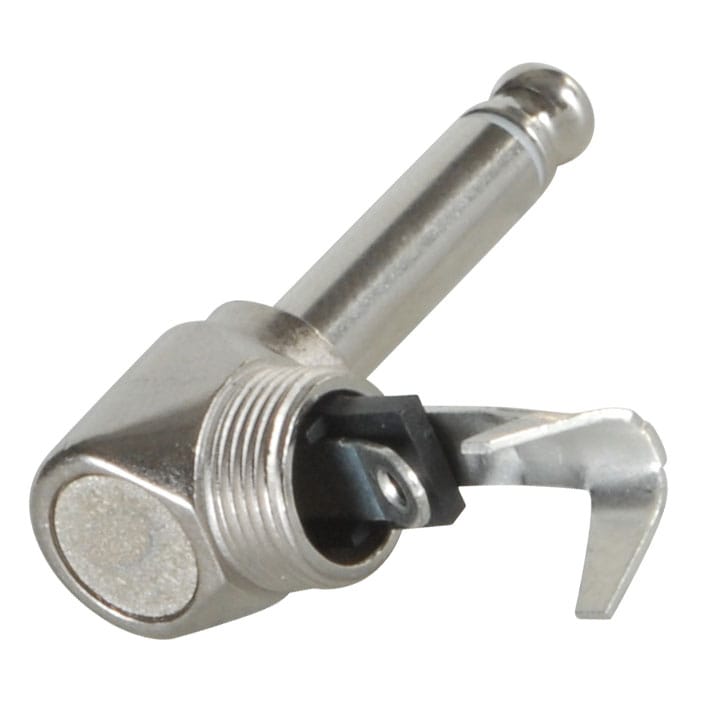

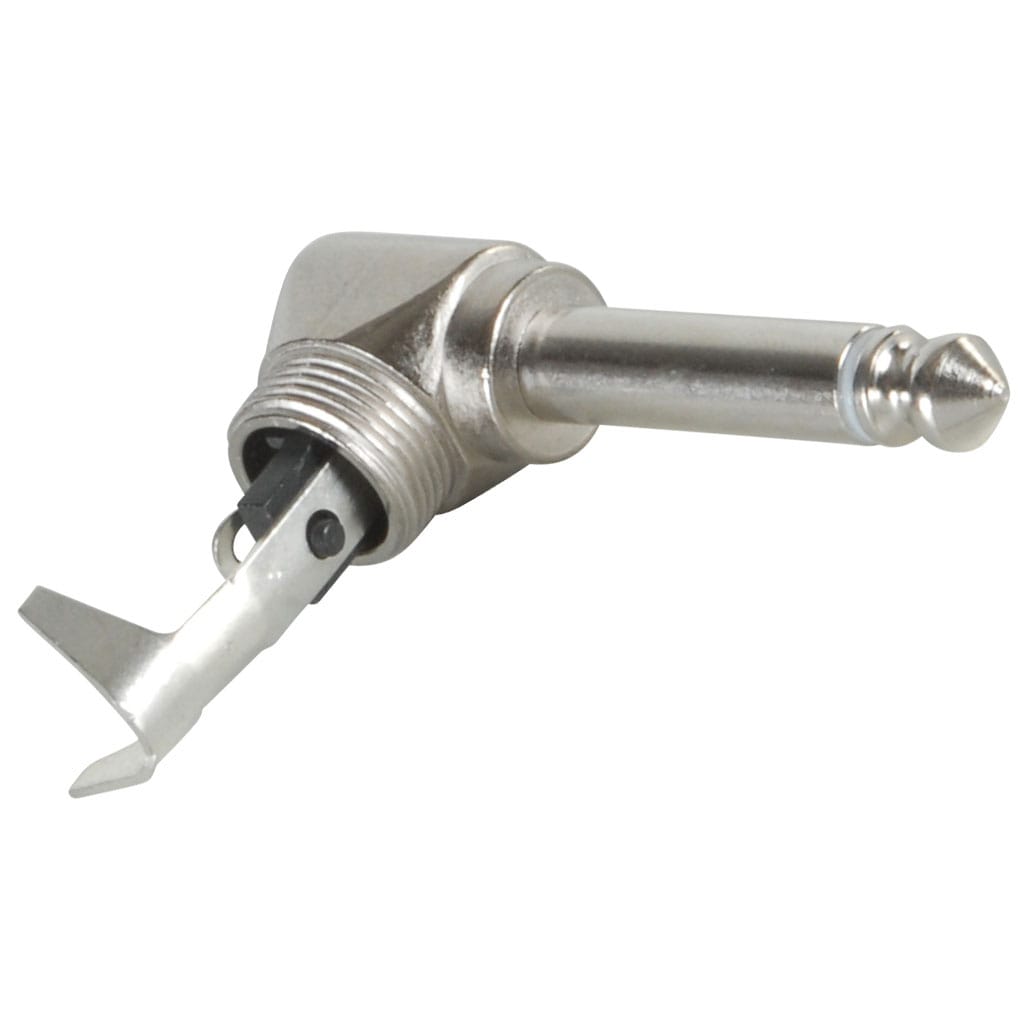

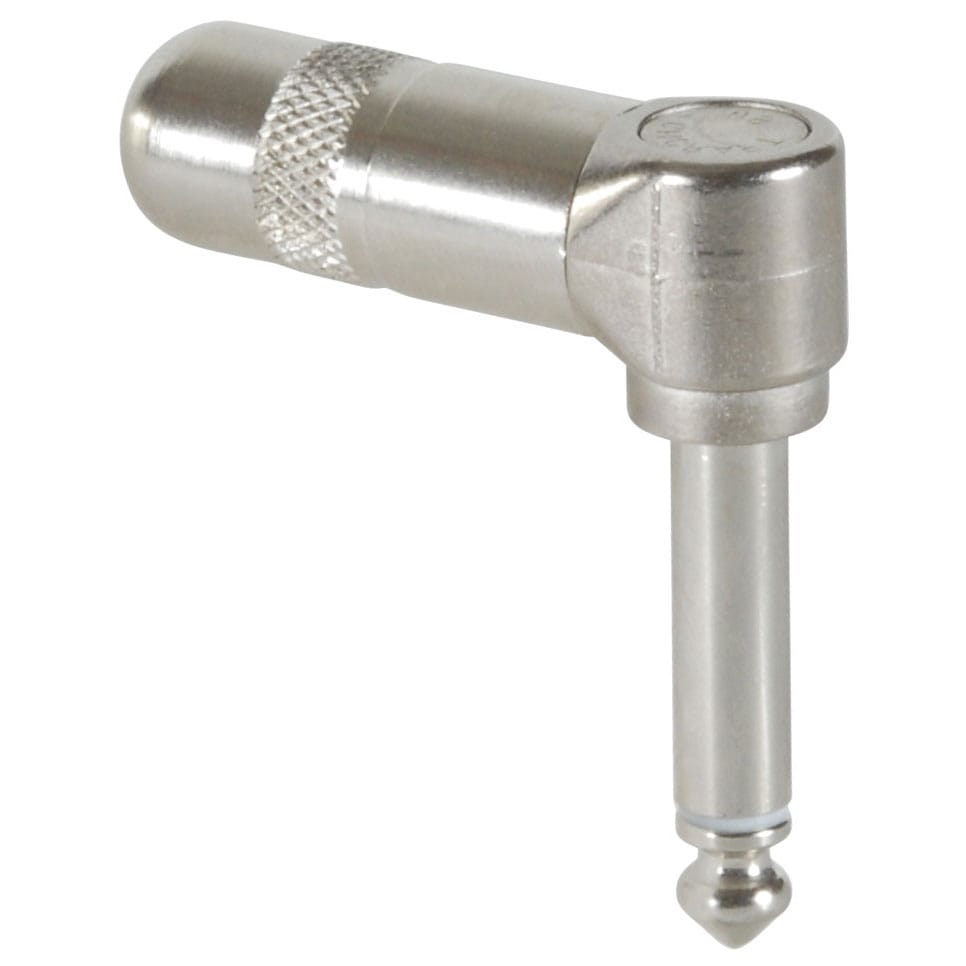

The Switchcraft 1/4" Mono Right Angle 2-Conductor Plug is designed for OEM development and users of commercial grade phone plugs. The plug is comprised of a handle, an insulator, and a finger/housing assembly. It features large terminals for easy 16 AWG wiring. For crowded wiring, the plug utilizes a 1/2" wide low-profile design. For secure connections, the plug features both knurled handles and a rugged cable clamp that prevents the wire strains from twisting or pulling out of the plug.
Specifications
CONSTRUCTION: Tip, Rod, and Handle: Nickel-plated copper alloy
HOUSING: Nickel-plated
TERMINAL: Tip: Tin-plated copper alloy
SLEEVE: Tin-plated steel
INSULATION MATERIAL: Thermoplastic
DIELECTRIC STRENGTH: 500 VAC
INSULATION RESISTANCE: 50,000 MΩ
OPERATING TEMPERATURE: -20 to 65°C
Nice quality and heavy duty jack. i installed it with mogami w2524 cable and it works great. highly recommended. thank you..
